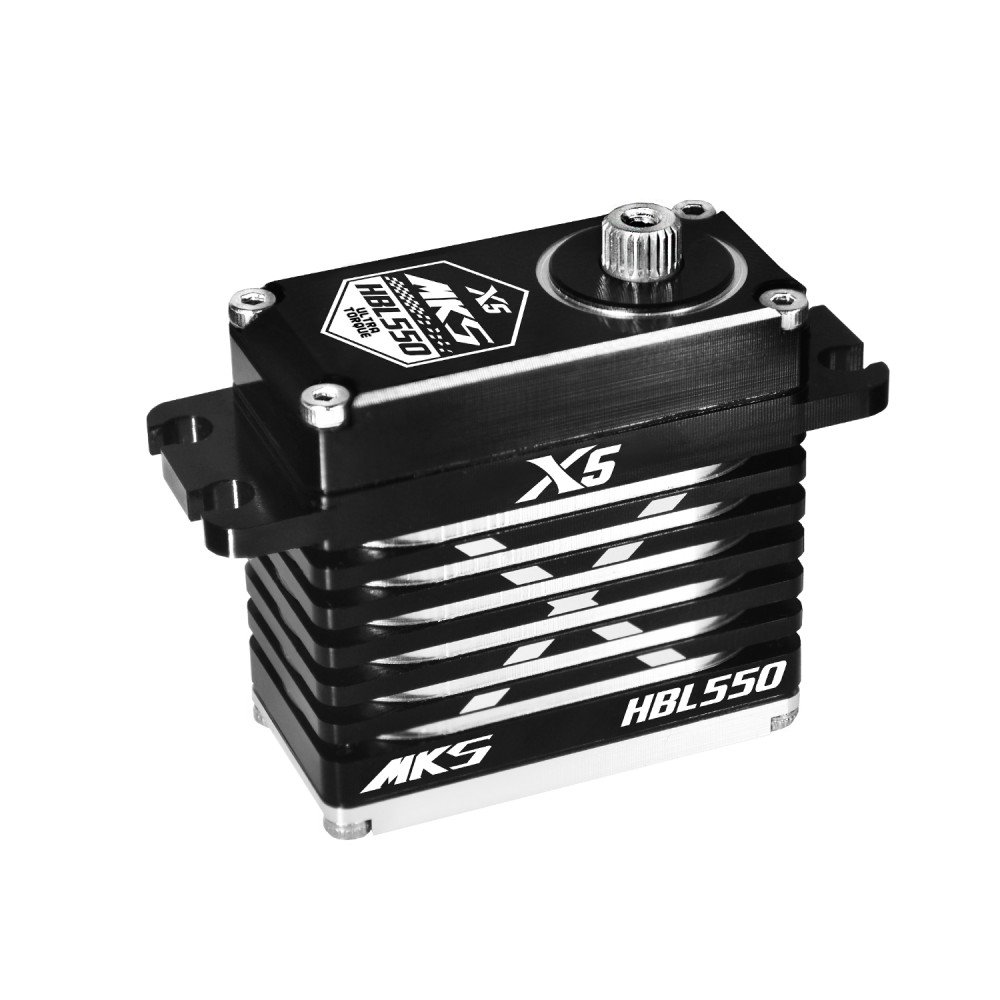

MKS X5 HBL550
SKU MKS-HBL550
Quantity in stock 4 item(s) available
Dead Band 0.001ms (Default)
Control System +Pulse Width Control
Working Frequence 1520μs / 333hz
Operating Voltage 5 ~ 8.4 Volts
Operating Temperature Range -10 to + 60 Degree C
Operating Speed (6V) 0.117 sec/60° degrees at no load
Operating Speed (7.4V) 0.094 sec/60° degrees at no load
Operating Speed (8.4V) 0.085 sec/60° degrees at no load
Stall Torque (6V) 402oz/in (29 kg/cm)
Stall Torque (7.4V) 499 oz/in (36 kg/cm)
Stall Torque (8.4V) 527 oz/in (38 kg/cm)
Motor Type Brushless Motor
Potentiometer Drive Indirect Drive
Bearing Type 12x8 mm Double bearings
Gear Type Alloy gear
Dimensions 40 x 20 x 38.5 mm
Weight 79.5 g
