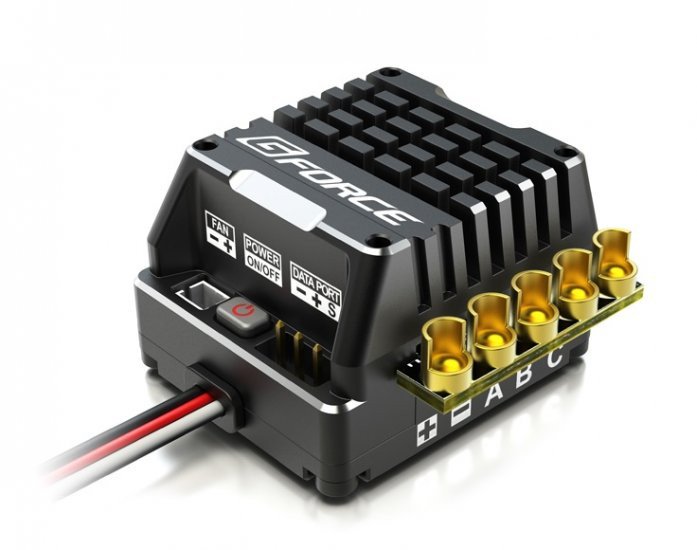

G-Force TS160A ESC
Features
Compact design for easy location.
Aluminum case for better heat dissipation.
Built in power switch for saving space and reliable operation.
Built in capacitor.
Advanced boost and turbo timing system for improving acceleration performance.
Well-performed throttle and brake control function.
10 sets of profiles stored in the ESC for easy calling out.
Adjustable BEC: 6V/7.4V.
Keeping the trigger to full brake for 8 seconds to power off ESC.
Variable programming method: program box, smart phone via Wi-Fi Link.
Powerful G Force link software which can test motor timing and advise the ESC timing
setting.
Firmware update by PC.
Safety features: low voltage protection, motor and ESC overheat protection and signal
lost protection.
Specification Constant/Burst Current 160A/920A Motor Compatible Brushless Sensor & Sensorless ESC Car Compatible 1/10,1/12 all competitions 1/10 and 1/8 Crawlers Motor Limits 2S Lipo or 4-6S NiMH ≥3.5T(1/10 on-road), ≥5.5T(1/10 off-road) 3S Lipo or 7-9S NiMH ≥5.5T(1/10 on-road), ≥8.5T(1/10 off-road) Resistance 0.00018ohm Battery Cell Count 4-9S NiMH or 2-3S LiPo BEC Output 6V/7.4V@5A, switch Size 30.6x35.6x22.5mm (LxWxH) Weight 45g (w/o wire) FAN 8V@0.2A , MAX 12.6V Direction of a Throttle "Forward/Brake" "Forward/Reverse" "Forward/Brake/Reverse" ＊The shipment state becomes "Forward/Brake". Optional PROGBOX (G0017) is needed for changing a setup.
