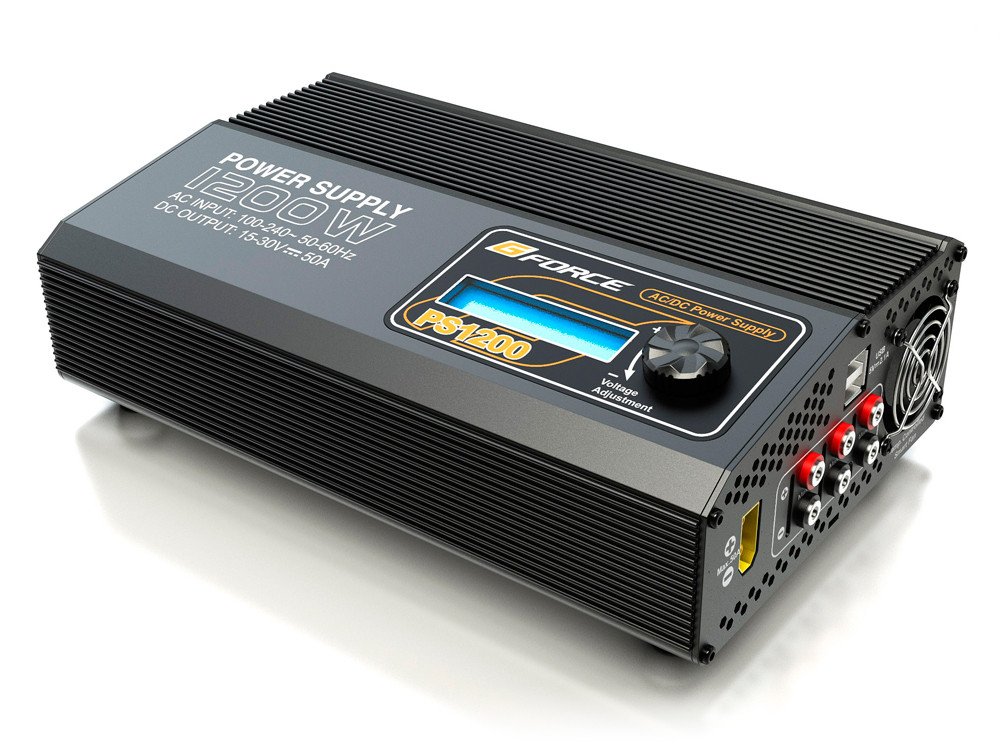

G-Force PS1200 Power Supply

A Battery Charger released in 2014 4y ago update
GForce introduce the PS1200 power 15-30VDC power supply. The high output device is usable with 100-240VAC input and offers a selectable output voltage of 15-30VDC with up to 50A current. Another three outputs up to 10A each. The power supply also features two 5V/2.1A USB ports, a temperature controlled fan and several safety features such as over voltage and over temperature as well as reverse polarity protection.

Features Active PFC: smaller AC input current less interference, and Conform to CE Regulations. One main DC power output up to 50 amperes and another three outputs up to 10 amperes each. Output voltage adjustable 15-30V. LCD indicates voltage, current amperes output, output power and the output power percentage. AC 100-240V worldwide operation: need not any alternative switcher, worldwide safe operation. Two USB ports, 5 volts, 2100mA total for iPad, mobile phone, digital cameras and etc. Smart cooling fans turned on upon the temperature automatically. Over current, over voltage, over load and over temperature protection. Short-circuit protection on output, safer and more reliable.

Product Specification Voltage 100-240V AC Input AC Frequency 50-60Hz Output Voltage 15-30V DC±0.5V Output Current 50A±1A Current Overload Protection ≤51A 500MS Input Fuse 20A Fuse LCD Display Voltage Precision ±0.3V Current Precision ±0.5A Output Voltage Ripple <300mV Power Efficiency 89% Power Factor >0.98 Over Temperature Protection <65℃ Cooling Method Cooling Fan Operating Temperature 0-40℃ Operating Humidity 0-90% Dimensions (LWH) 305x170x85mm Net Weight 3.08kg

Attributes

Bateery Type LiPo
