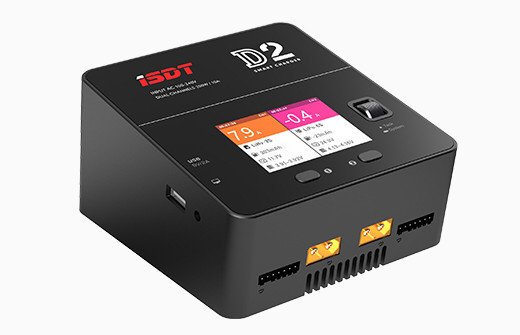

ISDT D2 Charger
D2 Smart balance charger
XT60 Charge Connector
Wide range AC Input, 200w of dual output
Dual channel output, without interference from each other
Support up to 6S balance charging and discharging with 2 output ports
5V/2A USB output power from side of the unit, easily charge your mobile phone or other electronic products
Wide range AC Input, Industrial level power management
Adaptive for all different voltages across the world
PFC circuit makes it works more stable and less interference to power grid
(SCP) Short current protection
(OLP) Over load protection
(OVP) Over voltage protection
(OTP) Over Temperature protection
Outstanding performance on the power space ratio
Carefully optimized internal structure, dual fan cooling system
High-speed efficient synchronous digital power supply technology, dual-fan High speed ball-bearing fan promotes active cooling efficiency
Bright, colorful, easy access set-up and status display
Firmware updates can be performed using a personal computer
AC Input
USB Port
Update Port
Balance port for channel 1
Battery port for channel 1
Battery port for channel 2
Balance port for channel 2
Channel 1 select button
Channel 2 select button
2.4"IPS display
Speed shuttle key
Overview
Specifications Input Voltage: AC 100-240V Charge Current: 0.1-12.0A x 2 Discharge Current: 0.1-3
