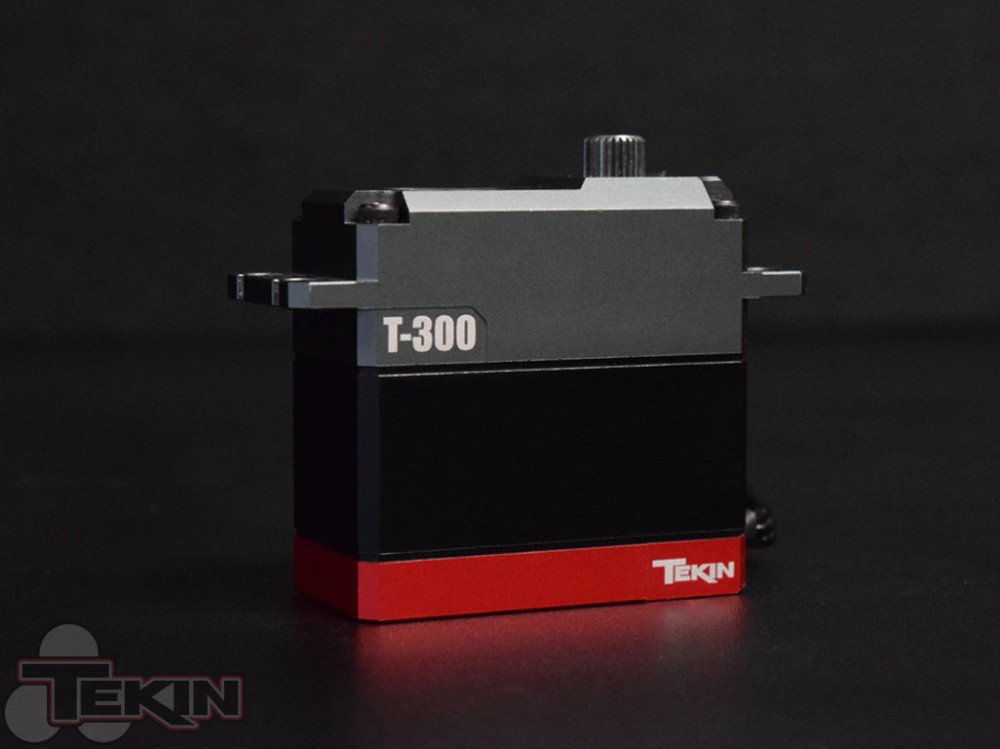

Tekin T-300 High Torque Servo

A Servo 4y ago

Pick your line and pass the competition with the Tekin T-300 Servo. Designed to give you the industry’s highest per degree resolution steering and plenty of speed to keep that chassis where you want it. Full Metal Gear set, All Aluminum Housing, Digital Position Encoding and loads of Torque, this servo keeps you in control. Fine-tune your setup with an extensive set of adjustments via Tekin’s HotWire PC Interface.

Torque: 8.4 - 7.4 - 6.0V

          354 - 328 - 284 oz/in

         25.5 - 23.6 - 20.5 kg/cm

Dynamic Torque: 8.4 - 7.4 - 6.0V 482 - 450 - 380 oz/in

                          34.7 - 32.4 - 27.4 kg/cm

Speed: 8.4 - 7.4 - 6.0V

        0.08 - 0.09 - 0.11 sec/60°

Input Voltage: 4.8V-8.4V Gear Set: Full Metal

Dimensions: 1.57 x 0.79 x 1.57in / 40 x 20 x 40mm

Mounting Height (Base to Mount Tabs): 1.10in / 28.4mm

Weight: 2.57oz / 73g

Digital Magnetic Position Encoder (DPE)

Specifically Designed for 1:8 Scale and Crawl Applications

Included Aluminum 20mm Crowbar HD Clamp Servo Arm

Full Aluminum Servo Housing

Element Proof Design*

Precision Cut Full Metal Gears

ABEC5 Ball Bearings

High Voltage Capable

High Torque Coreless Motor

25T Output Spline

Programmable via HotWire PC Interface

Overload Protection Technology

Thermal Protection Circuitry

Low Voltage Alarm**

Quiet, Efficient, Cool Operation

HDAC: High Density Copper PCB's

*Tekin Element Proof products are designed to withstand water, snow and mud. Not intended for operation while submerged in liquid.

**requires HotWire sold separately
