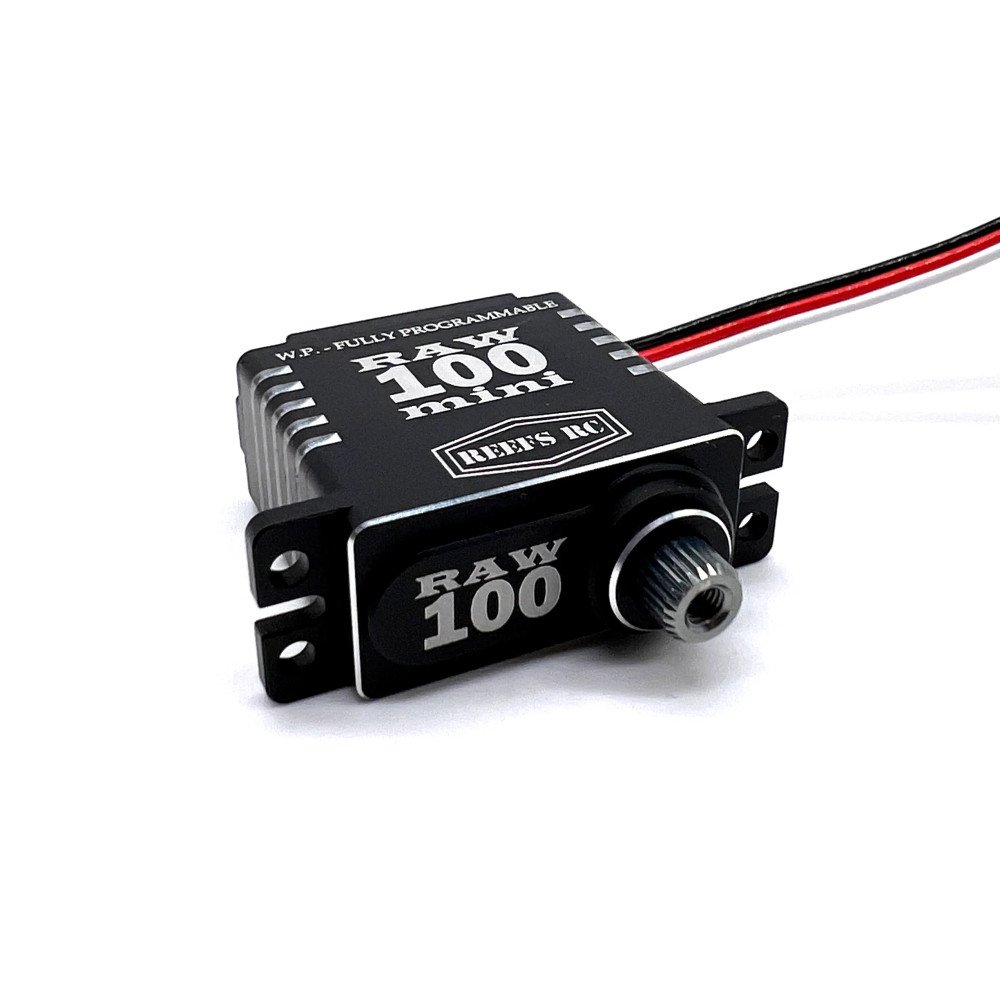

High Torque High Speed
Mini Coreless Servo
SUBMARINE WATERPROOF
Magnetic Angle Sensor
Pulse Width Modulation Control
REEFS LINK required for Programming
(Optional)

Voltage: 6v-8.4v
All Metal Gears
CNC Aluminum Casing w/ Heat Sink
Bearing Type: 2BB
Temp Rate: -15C°~ +70C
Weight: 1.05oz / 30g
Dimension: (LWH)
1.16 x .55 x 1.14 in
29.5 x 14 x 29 mm

Torque: 85oz @ 6.0v
95oz @ 7.4v
103oz @ 8.4v

Speed: .11sec @ 6.0v
.10sec @ 7.4v
.08sec @ 8.4v

Spline: 25T Standard
Dead Band Width: 2¦Ìs

Unload Current:

180mA @ 4.8V 200mA @ 6.0V 230mA @ 7.4V 260mA @ 8.4V

Load Current:

1200mA @ 4.8V 1400mA @ 6.0V 1500mA @ 7.4V 1800mA @ 8.4V


BEC Not Required, Recommended
for Max Perf.
