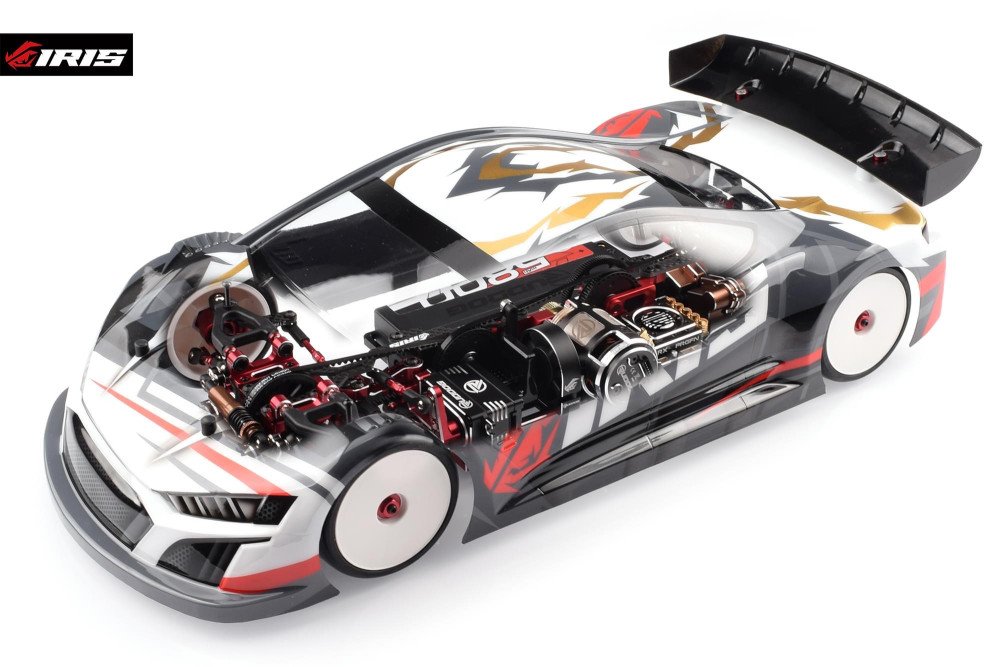

Iris Racing Iris One

A Car released in 2023 2y ago update
Featuring a unique pushrod design with torsion springs and a single-lever rotational shocks, the centre-of-gravity is super low, thus improving overall performance. Combined with sturdy double wishbones, the high-performance suspension package ensures fast and consistent lap times run after run. Moreover, the newly developed pitch and heave shock improves handling under braking and high speed cornering.

Together with an ultra-narrow bulkhead design, the efficient three-belt drive train results in perfect weight balance. With three identical belts, less belt tension is required than with a conventional two-belt set-up.

Many unique details, such as an optional direct-mount aluminium fan, have been integrated into the design of Iris ONE to give you an edge over the competition.

·         Unique torsion spring design
·         Single lever rotational shocks
·         Pushrod suspension
·         Double wishbone design; identical arms on all four corners
·         Revolutionary pitch and heave shock system
·         Efficient low friction three-belt drive train
·         Ultra narrow bulkhead design
·         Steering assembly with easily adjustable Ackermann geometry
·         Adjustable track width with inserts
·         Sturdy and fully adjustable suspension
·         Carbon chassis and Linear flex aluminium chassis version available
·         Optional direct-mount aluminium high-speed fan

Attributes

Class Onroad Scale/Size 1/10 Drivetrain 4wd Power Electric
