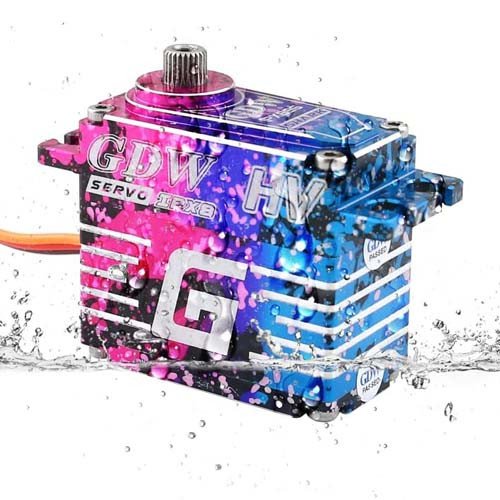

GDW RC Servo Manufacturing Factory 40KG Level 120° / 180° Steel Gear Brushless Waterproof Digital Servo For RC Car Boat Gas Airplanes
- GDW IPX 896 HV – Shark Waterproof
- Powerfull Servo for fixed wing aircraft and RC-Cars – water resistant housing
- Operation Voltage Range: 4.8V up to 8.4V
- Operation Temperature Range: -10C° up to +60C°
- Working frequency: 1520us/333Hz
- Motor Type: Brushless motor 17*18mm
- Potentiometer Type: Japan noble 220°
- Chip type: Digital
- Weight: 88±1g
- Gear Material: Steel gear
- Horn Gear Spline: 25T Φ5.9mm
- Wire length: 380±5mm
- Wire Diameter: 0.3mm²
- Number of wire cores: 60
- 28Kg.cm/0.14sec/60°@6.0V
33Kg.cm/0.12sec/60°@7.4V
36Kg.cm/0.10sec/60°@8.4V - 40.5*21*36.7mm
